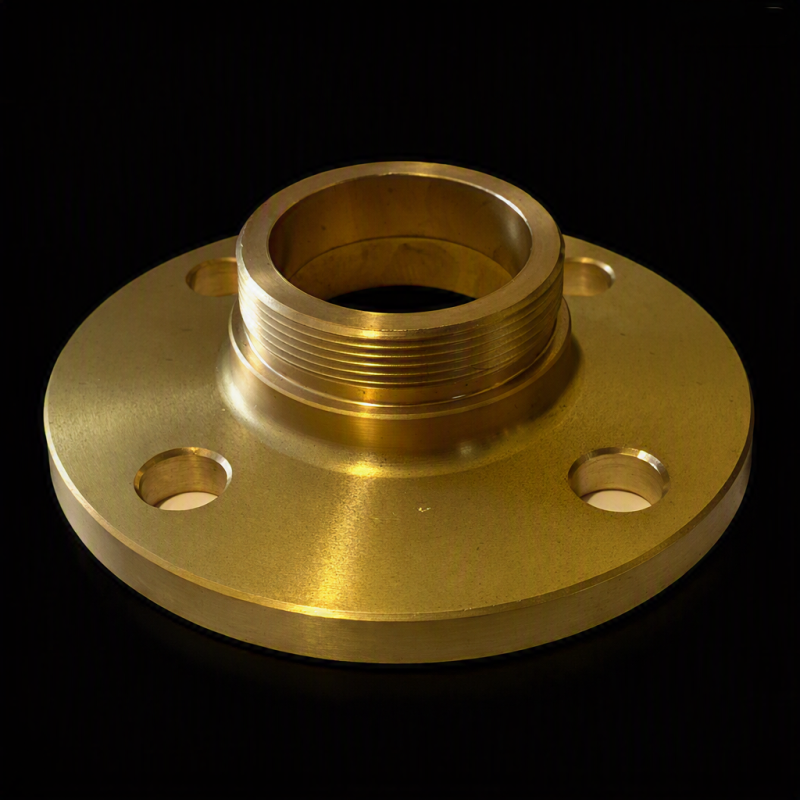

International Shore Connection - Shore Side (4-Hole Flange) 65mm BSP Male
$715.00
Tax included
SOLAS shore-side International Shore Connection. Brass, 4-hole bolted flange, 65mm / 2.5in BSP. Carried by port response teams and shore brigades.
Security policy
Secure checkout via Stripe. Payment details are encrypted and never stored on our servers.
Delivery policy
Stock items dispatch in 1–2 days. Built-to-order ships on completion.
Materials & product images
Patina varies naturally in salt service. Finish may differ from photos.
The shore-side half of the International Shore Connection pair, per SOLAS
Chapter II-2 Regulation 10.2.1.7. This is the unit carried by port emergency
response teams and shore brigades to connect land-based firefighting water into
a vessel's fire main.
Brass body with the standard four-hole drilled flange and a 65mm / 2.5in BSP
threaded connection. Pairs with the slotted ship-side unit.
**Face specification**
- Outer diameter 178mm
- Bore 64mm
- Bolt circle 132mm
- Four holes, 19mm diameter
- Flange thickness 14.5mm minimum, flat face
- Rated 1 N/mm² service
**Interoperability**
The BSP connection takes the full adapter range — BIC, Storz, Nakajima and NOR —
so a single shore-side unit serves any vessel calling at the berth, whatever
standard its fire main is fitted to.
Supplied with rubber flange gasket. Fastener kits available separately.
Held in Australian stock. Stock items dispatch in 1–2 business days, tracked, Australia-wide.
*Bronze and brass develop a natural patina in salt service. Surface colour will
vary between units and darkens with age; this does not affect function or
compliance.*
ISC-SHORE-4H-65
